Control Speed Vibratory Bowl Feeder Industrial Automatic Metal Prats Feeder

Control Speed Vibratory Bowl Feeder Industrial Automatic Metal Prats Feeder

1 . Descriptions:

Vibratory bowl feeders are widely used in industrial production and are the most common parts transfer system for assembly lines. Since the mid-20th century, they have been valued for their efficiency.

Core function: Use vibration to orient and convey parts along a production line

Power source: Electromagnet generates vibration that converts to mechanical motion

Mechanics: Magnetic coil under the plate is powered to produce vibration; mounted on springs that control movement

The electromagnetic vibration moves parts along a track, ensuring they enter the production line in the correct orientation.

2 . Specifications:

3 . Application of Vibratory Bowl Feeders :

A vibratory bowl feeder is automated equipment used on industrial production lines to transport parts in a specific sequence to a designated location.

A Japanese electronics manufacturer needed to automate shim transportation on their production line. The shims were small, came in various shapes, and required precise placement. Manual handling was slow and error-prone.

We customized a vibratory bowl feeder with these key features:
Multiple output paths to handle different shim sizes simultaneously
PLC control system for precise operation
Integrated sensors to ensure accurate delivery

The customized feeder successfully handled various shim sizes and materials while ensuring accurate transportation to the correct locations.

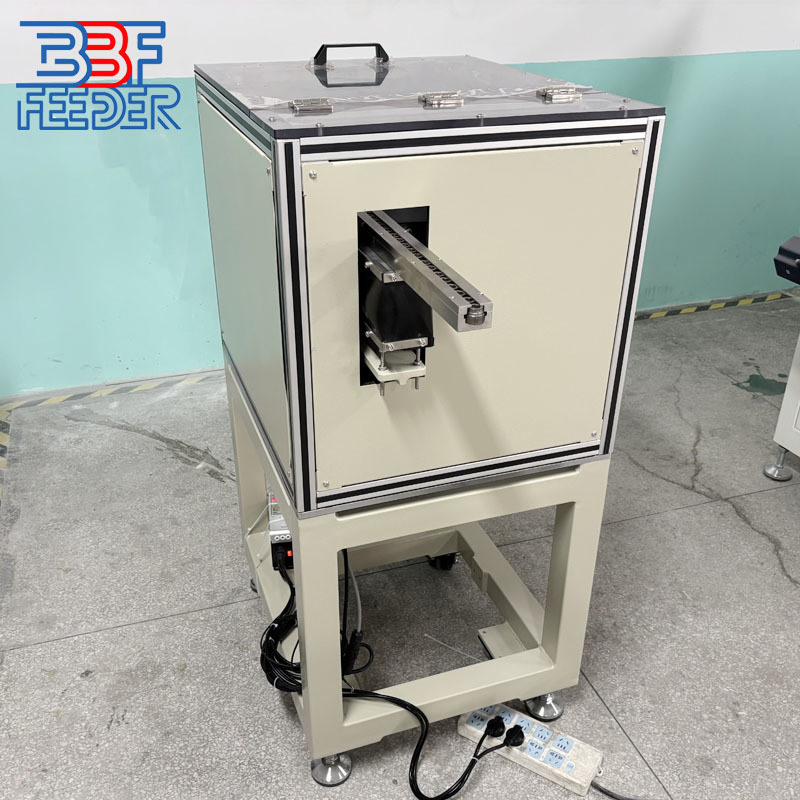

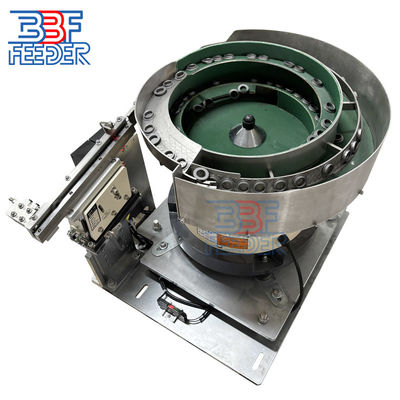

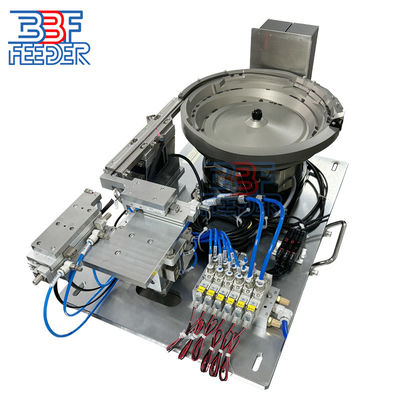

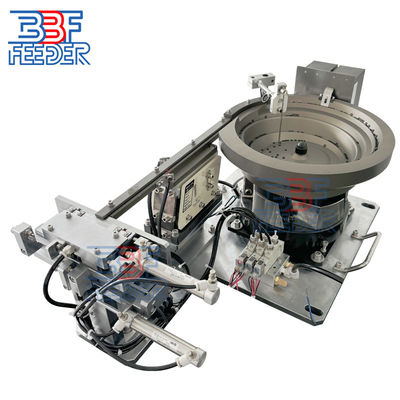

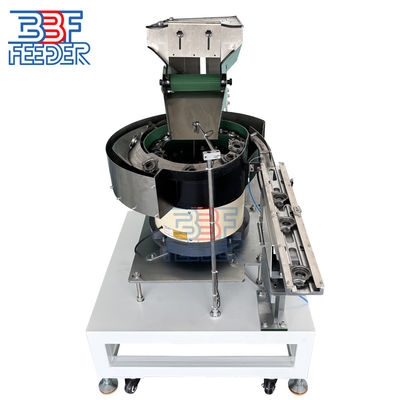

4 . More Pictures:
